MIL-DTL-5508C
Temperature gage
Temperature
control box
Pressure gage
Reservoir
Flowmeter
C°
Pump
Relief valve
Test fuse
4-way directional
control valve
Transfer cylinder or other
means for maintaining
quantity of fluid at
specified temperature
Fluid quantity
measuring device

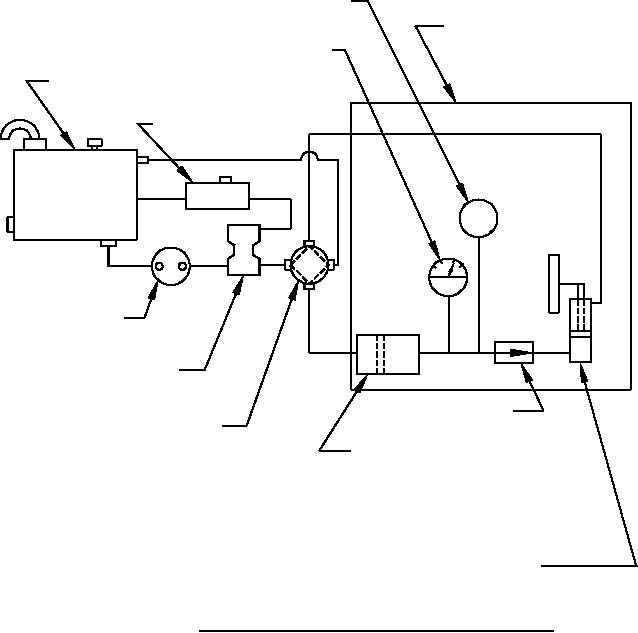

FIGURE 4. Typical installation for extreme temperature tests.
