INCH-POUND
AN6279 Rev 7
21 April 2011
SUPERSEDING
AN6279 Rev 6
01 July 1987
DETAIL SPECIFICATION SHEET
VALVE-HYDRAULIC PRESSURE RELIEF TWO PORT
Inactive for new design after 06 January 1961.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-5523.
Rated
Part
H
A
B
C
D
E
F
G
K
flow
or Identifying
Tubing
Max
Max
±.005
Max
±.005
GPM
Number (PIN)
OD
reference
min
AN6279-4XX
.25
4.4375
2.125
1.3125
1.500
1.312
1.3125
1.625
1.750
1.2
AN6279-6XX
.375
4.9375
2.375
1.75
1.625
1.5
1.500
1.8125
2.000
3.5
AN6279-8XX
.5
5.875
2.750
1.875
2.000
1.75
1.750
2.125
2.375
6.0
AN6279-12XX
.75
7.250
3.625
2.625
2.250
2.125
2.125
2.875
3.250
16.0

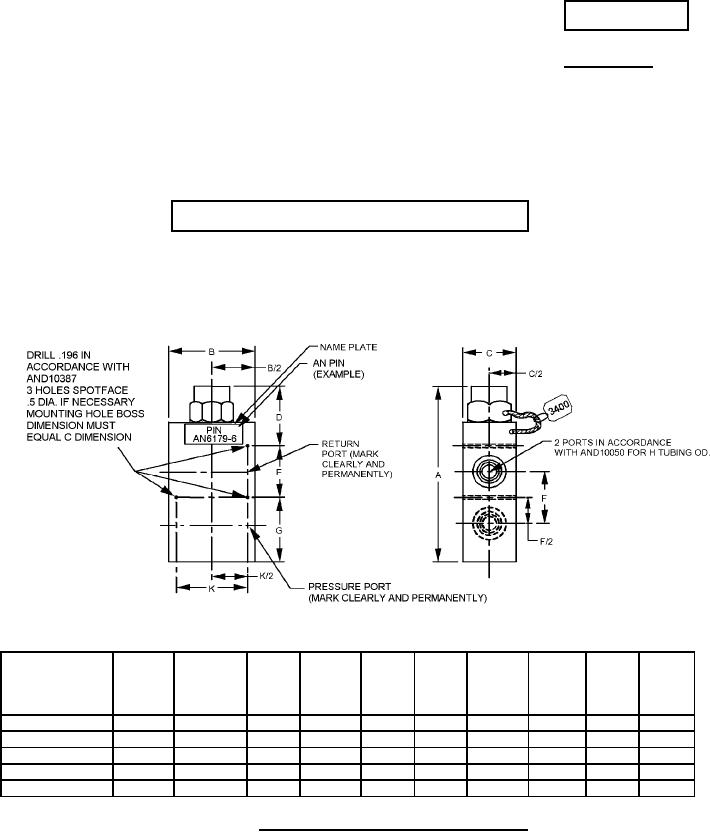

FIGURE 1. Valve - hydraulic pressure relief two port.
AMSC N/A
FSC 1650
