MIL-V-29592/1(AS)

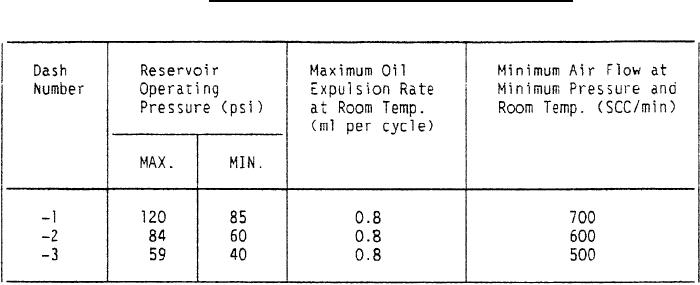

TABLE I.
Automatic air vent valve characteristics.
1.
Materials:
Aluminum Alloy
\ See procurement
Corrosion Resistant Steel
/ specification
2.
Finish:
Aluminum Alloy: Anodize per MIL-A-8892.
Corrosion Resistant Steel: Surface shall be treated and
passivated per QQ-P-35.
The torque test of the general specification shall be performed with a
3.
torque value of 120 in-lb. Valves that have body halves attached together
utilizing screw threads that are lock-wired shall be exempt from this test.
NOTES:
1.
Dimensions are in inches. Unless otherwise specified, tolerances:
decimals: ±.010, angles ±1°.
Remove all burrs and break all sharp edges .005 minimum.
2.
3.
Unless otherwise specified, surface roughness shall not exceed 125 micro-
inches Ra per ANSI/ASME B46.1.
4.
External dimensions for the MS33656 ports shall be per the applicable
specification. The internal dimensions may be modified for installation
of valve components. The inlet of the valve shall only be installed in an
MS33649 port. No tube connection utilizing MIL-F-5509 fittings shall be
made to the reservoir connection. Connections to the outlet shall utilize
flared fittings per MIL-F-5509.
The part number shall consist of the letter M the basic number of this
5.
specification sheet, the slash number of this specification sheet and the
dash number as selected from Table I.
6. Example of part numbers: M29592/1-3.
